Overview
The BLAMHD11VA Group A Masthead Amplifier is designed to provide additional signal strength in Group A aerial installations (470–606MHz). Gain is adjustable from 12–27dB, allowing the amplifier to be set according to the required signal level.
Suitable for Group A TV aerial installation and combined Group A/Group B aerial systems.
Features
- 1-way masthead amplifier
- Group A UHF: 470–606MHz
- Variable gain: 12–27dB
- Suitable for use with the BLACOM21AB A/B masthead combiner
- 90° Wide Opening Door for easy access.
- Optional Securing Screw for added stability.
- Heavy-Duty UV Stabilized Cable Tie for secure installation.
- Dual LED Indicators for advanced short circuit protection.
- Foam Seal Cable Entry Glands to safeguard against external elements.
- Power LED on Amplifier for visual confirmation of power status.
- 45° Swivel and Click Amp for flexible positioning.
- Robust Wall Mountable Lugs for secure installation.
- Low Noise Figures <2.2dB for superior signal quality.
- F-Type Connectors for reliable connections.
Equipotential Bonding Point/Earthing Tag for safety compliance.
Applications

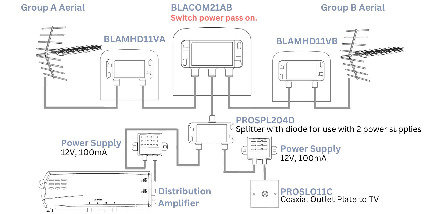

The BLAMHD11VA can be used where additional amplification is required on a Group A aerial. In a combined aerial installation, the Group A and Group B aerials can be connected to the BLACOM21AB, with the BLAMHD11VA used to amplify the Group A signal, and/or the BLAMHD11VB for Group B. The combined signal can then be fed towards the distribution equipment and TV outlets.
We recommend using good-quality coaxial cable and connectors to maintain RF screening integrity and minimise interference.
