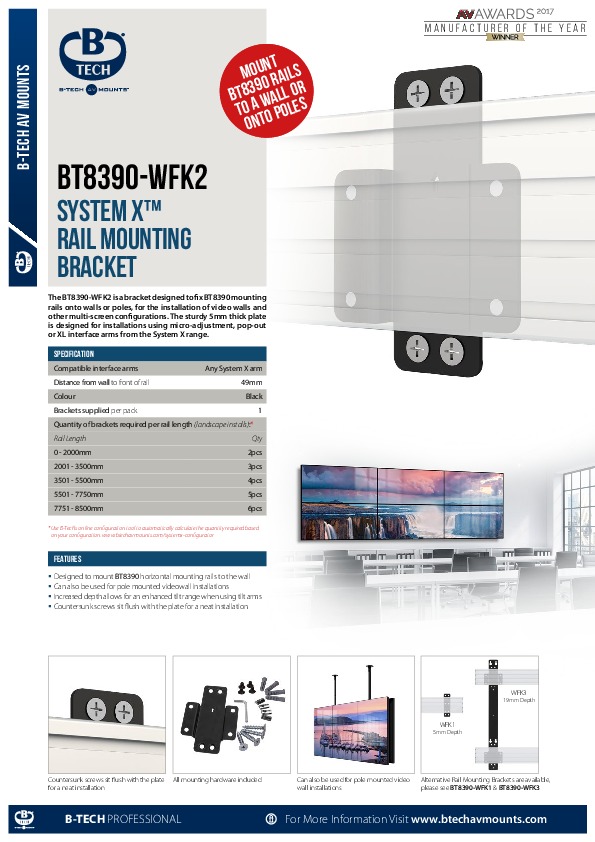

The BT8390-WFK2 is a bracket designed to fix BT8390 mounting rails onto walls or poles, for the installation of video walls and other multi-screen configurations. The sturdy 5mm thick plate is designed for installations using micro-adjustment, pop-out or XL interface arms from the System X range.
- Designed to mount BT8390 horizontal mounting rails to the wall
- Can also be used for pole mounted videowall installations
- Increased depth allows for an enhanced tilt range when using tilt arms
- Countersunk screws sit flush with the plate for a neat installation
- Compatible interface arms: All System X Arms
- Distance from wall (to front of rail): 49mm
- Colour: Black
- Brackets supplied (per pack): 1
- Quantity of brackets required per rail length (landscape installs):*
Rail Length Qty
0 - 2000mm 2pcs
2001 - 3500mm 3pcs
3501 - 5500mm 4pcs
5501 - 7750mm 5pcs
7751 - 8500mm 6pcs
*Use B-Tech's online configuration tool to automatically calculate the quantity required based on your configuration.
