AJAX Hub - Black

Control Panel (Sim Card Required)
Sim, 2G, Ethernet
*REDUCED TO CLEAR* *SAVE 15%*

SKU: 22909.01.BL1

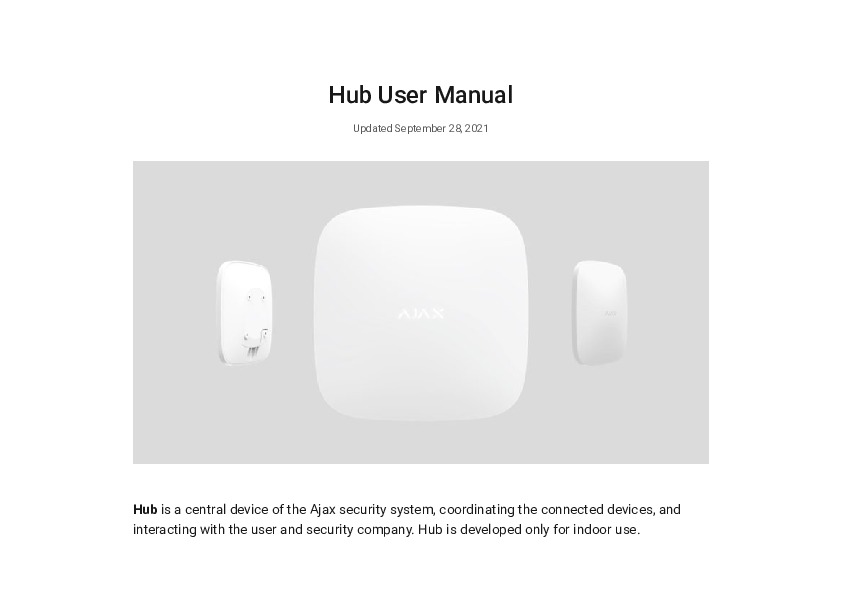

  Product Documents

AJAX Hub - Black

Control Panel (Sim Card Required)
Sim, 2G, Ethernet
*REDUCED TO CLEAR* *SAVE 15%*


The Hub intelligent control panel is a key element of the Ajax security system. The device monitors operation of all Ajax detectors and immediately sends an alarm signal to the owner and the Central Monitoring Station.

Main features:

  • Connect up to 100 devices to the hub
  • Up to 50 users per hub
  • Connects using ethernet or Micro-SIM
  • Grade II rated
  • Checks in with devices every 36 seconds (other systems tend to check in every 20 minutes)
  •

h) for up to 15 hours of offline operation when Ethernet is switched off

  • Compatible with iOS and Android

Installation: Indoors
Connected devices ; 100
Users: 50
Rooms: 50
Groups: 9
Mobile apps: iOS 11.0 and later / Android 4.4 and later
Communication channels: Ethernet, GSM (850/900/1800/1900 MHz)
Alarm signal: Delivery time: 0.15 s / Types of notifications: SMS message, call, push
Communication with Central Monitoring Station: Contact ID, SIA
Processor: ARM
Operating system: OS Malevich
Power supply: 110-250 V from mains or 12 V when using 12V PSU for Hub/Hub Plus/ReX / Built-in back-up battery: Li-Ion 2 А·h / Up to 15 hours of offline operation when the Ethernet is switched off / Energy consumption from the grid - 10 W

Jeweller radio technology
Communication range with detectors - up to 2,000 m in an open space
Two-way communication between devices
Operating frequencies - 868.0 - 868.6 MHz
Self-adjusting RF output power - up to 25 mW
Block encryption based on AES algorithm
Detector polling period - 12−300 s
Frequency hopping

SIM card support: Micro SIM 2G
Operating temperature range: From -10°С to +40°С
Anti-sabotage: Protection against fraud / Jamming detection / Tamper-resistant
Video surveillance: Up to 10 cameras or DVRs
Remote set up:+
Dimensions: 163 × 163 × 36 mm
Weight: 350 g
Warranty: Replacement and repair within 24 months of the date of sale. Batteries are not covered under warranty.
Connected ReX: 1
Connected sirens: up to 10
Scenarios: 5
Service life: 10 years
MotionCam detectors support: No
