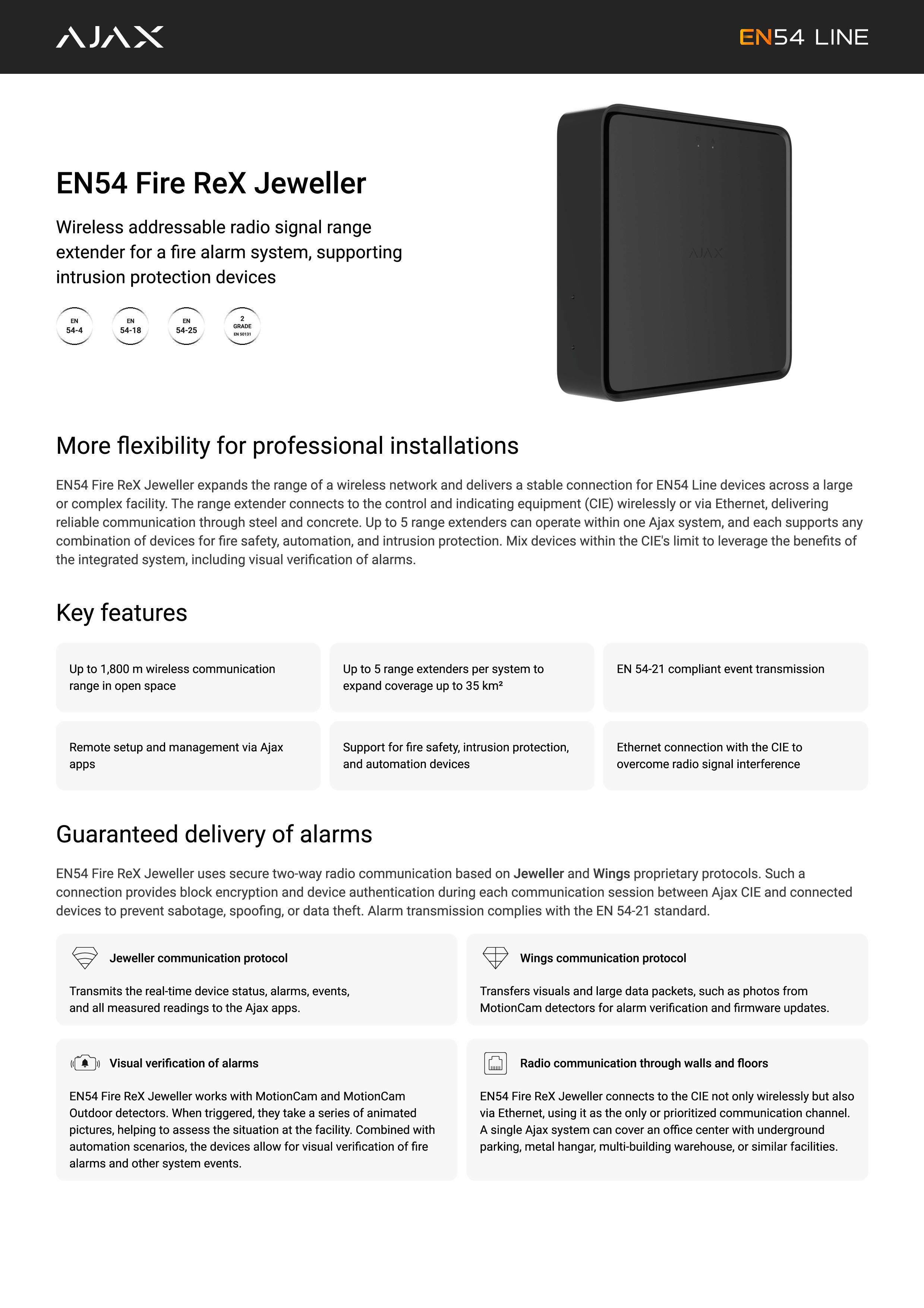

Connection possibilities
Number of EN54 Fire ReX Jeweller connected to the CIE
up to 5
Number of devices connected to EN54 Fire ReX Jeweller
up to 199
Wireless communication
Jeweller communication technology
Proprietary wireless communication technology to transmit commands, alarms, and events.
Key features:
- Two-way communication.
- Advanced sabotage protection.
- Block encryption featuring a dynamic key.
- Instant notifications.
- Remote control and configuration in Ajax apps.
Frequency bands
866.0 – 866.5 MHz
868.0 – 868.6 MHz
868.7 – 869.2 MHz
905.0 – 926.5 MHz
915.85 – 926.5 MHz
921.0 – 922.0 MHz
Depends on the sales region.
Maximum effective radiated power (ERP)
up to 20 mW
Automatic power control to reduce power consumption and radio interference.
Radio signal modulation
GFSK
Radio communication range
up to 1,800 m
Between the CIE and connected devices (in an open space). Maximum range depends on the connected device.
Encrypted communication
All stored and transmitted data are protected by block encryption featuring a dynamic key.
Frequency hopping
To prevent radio interference and jamming.
Wings communication technology
Proprietary wireless communication technology to transmit photo verifications and update firmware.
Key features:
- Two-way communication.
- Advanced sabotage protection.
- Block encryption featuring a dynamic key.
- Data packet reload in case of transmission errors.
- Photo delivery check.
Frequency bands
866.0 – 866.5 MHz
868.0 – 868.6 MHz
868.7 – 869.2 MHz
905.0 – 926.5 MHz
915.85 – 926.5 MHz
921.0 – 922.0 MHz
Depends on the sales region.
Radio communication range
up to 1,800 m
Between the CIE and a radio signal range extender, or between a range extender and connected devices (in an open space). Maximum range depends on the connected device.
Encrypted communication
All stored and transmitted data is protected by block encryption featuring a dynamic key.
Frequency hopping
To prevent radio interference and jamming.
Communication channels
Ethernet
1 8P8C socket
Up to 100 Mbps.
Delivery time
Alarm delivery time to the CIE
0.3 s
Photo delivery time to the CIE
18 s
Via EN54 Fire ReX Jeweller using the Wings channel. Delivery time depends on the settings.
10 s
Via EN54 Fire ReX Jeweller using the Ethernet channel. Delivery time depends on the settings.
Additional features
LED indication
green
For power supply status.
yellow
For device faults.
Special tool (key)
The special tool is used to remove the front panel from the range extender.
Installation recommendations
The device is designed for indoor use only.
The device operating voltage is 110–240 V~.
Sabotage protection
Tamper buttons
2
Notifications about the fault on attempts to detach the device from the surface or remove the mounting panel.
Protection against spoofing
device authentication
Connection loss detection
after 36 s
Detection time depends on Jeweller settings.
Power supply
External
100–240 V, 50/60 Hz
Up to 0.48 A of mains power consumption.
Internal
7.4 V⎓, 5 Ah/10 Ah
On a rechargeable Li-ion battery (not included in the complete set): EN54 Internal Battery (24h) or EN54 Internal Battery (72h).
Quiescent device’s current consumption at nominal voltage
80 mA
Maximum device’s current consumption at nominal voltage
105 mA
Low battery voltage
6 V⎓
Low battery recovery voltage
6.2 V⎓
End-of-life battery voltage
6 V⎓
Device is switched off.
Minimum energy level for a backup battery in the charged state
8 V⎓
Autonomous operation
On internal battery
up to 50 hours
When Ethernet is enabled. On EN54 Internal Battery (24h) not included in the complete set.
up to 100 hours
When Ethernet is enabled. On EN54 Internal Battery (72h) not included in the complete set.
Enclosure
Dimensions
210 × 210 × 51 mm
Weight
890 g
Operating temperature range
from −10 °C to +40 °C
Operating humidity
up to 75% non-condensing
Protection class
IP20
Flammability rating
UL 94 V-0
