(5) UBIQUITI UniFi UAP AC HD 1733Mbps

Access Point 4x4 MU-MIMO 2.4/5 GHz(5 Pack)
(Supplied without PoE Injectors)
*Special Order - Please Check Lead Times*

SKU: UAP-AC-HD-5

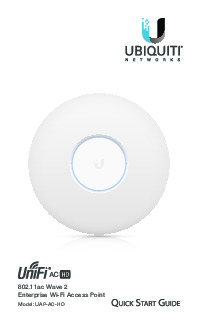

Product Documents

PDF1

(5) UBIQUITI UniFi UAP AC HD 1733Mbps

Access Point 4x4 MU-MIMO 2.4/5 GHz(5 Pack)
(Supplied without PoE Injectors)
*Special Order - Please Check Lead Times*


The Ubiquiti UniFi AC HD is ideal for high-density environments requiring maximum wireless performance.

The UniFi AC HD AP features simultaneous, dual-band, 4x4 MU-MIMO technology and convenient 802.3at PoE+ compatibility. The UAP-AC-HD boasts a maximum wireless data rate of 800Mbps on 2.4GHz and 1733Mbps on 5GHz.

Easy Mounting - Its sleek design seamlessly integrates into any environment (all accessories included) and is compatible with existing UAP-AC-PRO mounts.

LED - Unique LED provisioning ring provides administrator location tracking and alerts for each device.

Dual Gigabit Ethernet - The UniFi AC HD AP offers a secondary port available for bridging.

Superior Processing Power - The UniFi AC HD AP is capable of complex operations (guest control, filtering, and other resource-intensive tasks) that may slow down a lesser-equipped AP.

Power over Ethernet (PoE) - Includes PoE functionality. Each single-pack includes a PoE adapter.

PoE Standard - The UniFi AC HD AP is compatible with an 802.3at PoE+ compliant switch. We recommend powering your UniFi devices with a UniFi PoE Switch (sold separately).

UniFi PoE Switch - Available in 8, 16, 24, and 48-port versions with multiple power output options, the UniFi PoE Switch conveniently offers auto-sensing IEEE 802.3af PoE/802.3at PoE+ and configurable 24V passive PoE.


Technology:

Initial 802.11AC Wave 1 SU-MIMO (Single-User, Multiple Input, Multiple Output) technology allows an earlier-generation AP to communicate with only one client at a time. 802.11AC Wave 2 MU-MIMO (Multi-User, Multiple Input, Multiple Output) technology allows a Wave 2 AP to communicate with multiple clients at the same time significantly increasing multi-user throughput and overall user experience.

MU-MIMO - Assuming the same conditions, a Wave 2 AP provides up to 75% improvement* overall over a Wave 1 AP. This improvement increases wireless performance and/or serves more clients at the same performance level.


UAP-AC-HD Specifications:

Dimensions - 220 x 220 x 48.1 mm (8.66 x 8.66 x 1.89")
Weight (With Mounting Kits) - 830 g (1.83 lb)
Networking Interface - (2) 10/100/1000 Ethernet Ports
Port - (1) USB 3C Port
Buttons - Reset
Power Method - Passive Power over Ethernet (48V), 802.3at Supported (Supported Voltage Range: 44 to 57VDC)
Power Supply - 48V, 0.5A PoE Gigabit Adapter
Power Save - Supported
Maximum Power Consumption - 17W
TX Power 2.4 GHz & 5 GHz - 6-25 dBm
Antennas 2.4 GHz - (2) Antennas, 3 dBi each
Antennas 5 GHz - (2) Antennas, 4 dBi each
Wi-Fi Standards - 802.11 a/b/g/n/ac/ac-wave2
Wireless Security - WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES) 802.11w/PMF
BSSID - Up to Four per Radio
Mounting - Wall/Ceiling (Kits Included)
Operating Temperature - -10 to 70C (14 to 158F)
Operating Humidity - 5 to 95% Noncondensing
Certifications - CE, FCC, IC

* Actual performance values may vary depending on environmental and installation conditions.
