250m TRIAX Domestic RG6 White PVC

Copper Clad Steel (CPR Class Fca)
*PROMO PRICES*

SKU: 370768

Supplier: Triax

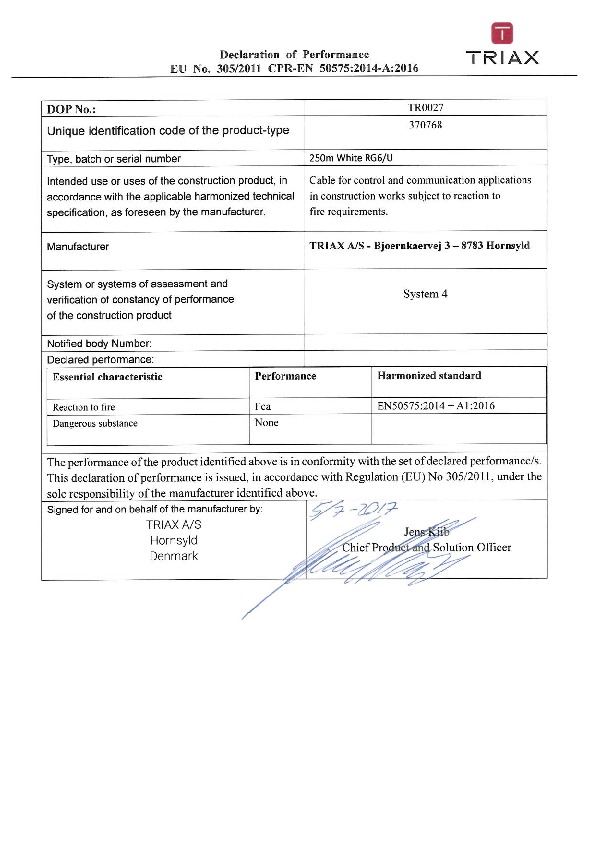

Product Documents

PDF1

250m TRIAX Domestic RG6 White PVC

Copper Clad Steel (CPR Class Fca)
*PROMO PRICES*


- Double Screened Foil/Braid
- Copper Coated Steel Inter-Conductor
- Ideal for FM-DAB-UHF
- Ideal for Satellite (Loss subject to length of cable run)

CONSTRUCTION
Inner conductor - material: CCS
Dielectric - material: Foam P.E.
Dielectric - dimension: 4.6 mm
Shield (First) foil 1 - material: Al-PET 17/12um
Shield (First) foil 1 - overlap: >=2mm
Shield (Second) - braid material: Al
Shield (Second) - braid coverage: 40 %
Jacket - dimension: 6.50 mm
Jacket - material: PVC

LOSS
Attenuation (at 20°C) @ 5 MHz: 1.6 dB
Attenuation (at 20°C) @ 50 MHz: 4.6 dB
Attenuation (at 20°C) @ 100 MHz: 6.5 dB
Attenuation (at 20°C) @ 200 MHz: 9.5 dB
Attenuation (at 20°C) @ 470 MHz: 15.0 dB
Attenuation (at 20°C) @ 862 MHz: 19.5 dB
Attenuation (at 20°C) @ 1000 MHz: 21.5 dB
Attenuation (at 20°C) @ 1750 MHz: 29.0 dB
Attenuation (at 20°C) @ 2150 MHz: 32.5 dB
Attenuation (at 20°C) @ 3000 MHz: 39.0 dB

RETURN LOSS
Structural return loss @ 5-470 MHz: 23 dB
Structural return loss @ 470-862 MHz: 23 dB
Structural return loss @ 862-2400 MHz: 18 dB

ELECTRICAL
Impedance: 75 Ω
Capacity: 52 pF/m
Velocity ratio: < 82 %
Inner DC resistance: < 102 Ω/km
Outer DC resistance: < 60 Ω/km

MECHANICAL
Colour: White
Length (m): 250 m
Minimum bending radius - single/repeated: 27.5 / 75.5 mm
Remarks: 250m on Wooden Reel
Diameter: 6.8 mm
