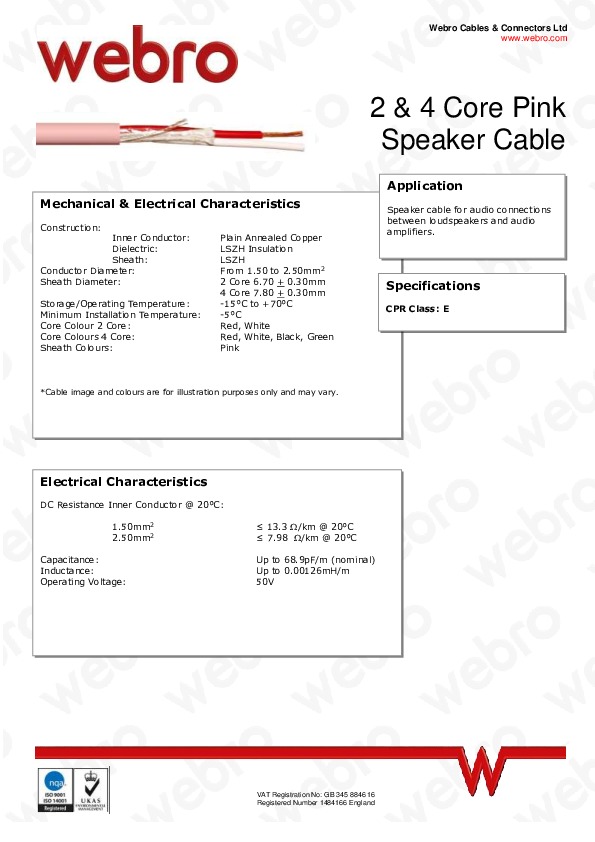

Speaker cable for audio connections between loudspeakers and audio amplifiers.
CPR Class: Eca
Construction:
Inner Conductor: Plain Annealed Copper
Dielectric: LSZH Insulation
Sheath: LSZH
Conductor Diameter: From 1.50 to 2.50mm2
Sheath Diameter: 6.70 + 0.30mm
Storage/Operating Temperature: -15°C to +70°C
Minimum Installation Temperature: -5°C
Core Colour 2 Core: Red, White
Sheath Colours: Pink
Electrical Characteristics:
DC Resistance Inner Conductor @ 20°C:
1.50mm2 ≤ 13.3 Ω/km @ 20°C
2.50mm2 ≤ 7.98 Ω/km @ 20°C
Capacitance: Up to 68.9pF/m (nominal)
Inductance: Up to 0.00126mH/m
Operating Voltage: 300V
