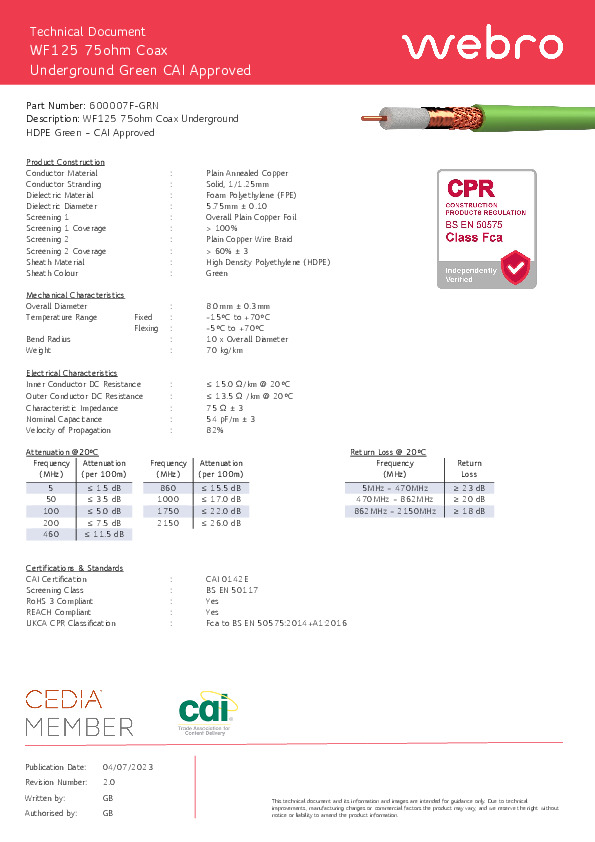

Manufactured by Belden. Specified to meet en 50117 with a watertight dielectric, this PRG7 75-ohm cable is ideal for use where water ingress might be a problem. Manufactured with tough green ug sheath, suitable for direct burial. Based on the standard WF125 range of cables but with green outer sheath.
INNER CONDUCTOR (mm): 1.25cu
DIELECTRIC (mm): 5.72 Foam PE
OUTER CONDUCTOR (mm): CU Foil
OUTER SHEATH (mm): 8.1 pvc
SETTING RADIUS (mm): 75MM
ATTENUATION: 100MHz 3.50 dB/100m
470 - 10.9
860 - 14.5
2150 - 24.8
