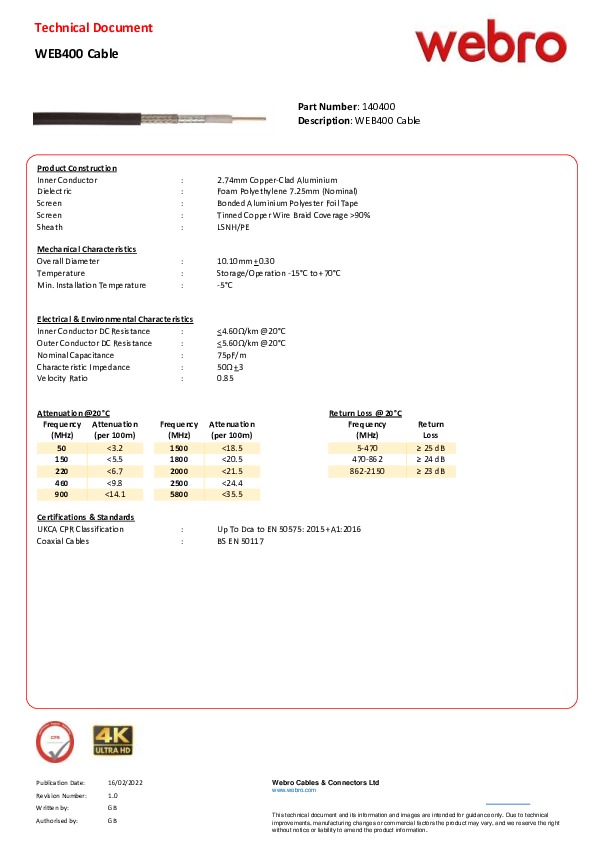

WEB400 cable is suitable for many applications, including jumper assemblies in wireless communication and short antenna feeder runs. It consists of a 2.74mm CCA conductor, foam polyethylene insulation, bonded aluminium tape with tinned copper wire braid.
PRODUCT CONSTRUCTION
Inner Conductor: 2.74mm Copper-Clad Aluminium
Dielectric: Foam Polyethylene 7.25mm (Nominal)
Screen: Bonded Aluminium Polyester Foil Tape
Screen: Tinned Copper Wire Braid Coverage >90%
Sheath: LSNH/PE
MECHANICAL CHARACTERISTICS
Overall Diameter: 10.10mm +0.30
Temperature: Storage/Operation -15°C to +70°C
Min. Installation Temperature: -5°C
ELECTRICAL & ENVIRONMENTAL CHARACTERISTICS
Inner Conductor DC Resistance: <4.60Ω/km @20°C
Outer Conductor DC Resistance: <5.60Ω/km @20°C
Nominal Capacitance: 75pF/m
Characteristic Impedance: 50Ω +3
Velocity Ratio: 0.85
ATTENUATION @20°C
Frequency (MHz) | Attenuation (per 100m)
50 | <3.2
150 | <5.5
220 | <6.7
460 | <9.8
900 | <14.1
1500 | <18.5
1800 | <20.5
2000 | <21.5
2500 | <24.4
5800 | <35.5
RETURN LOSS @ 20°C
Frequency (MHz) | Return Loss
5-470 | ≥ 25 dB
470-862 | ≥ 24 dB
862-2150 | ≥ 23 dB
CERTIFICATIONS & STANDARDS
UKCA CPR Classification: Up To Dca to EN 50575: 2015 +A1:2016
Coaxial Cables: BS EN 50
