100m TRIAX Domestic RG6 White PVC

Copper Clad Steel (CPR Class Fca)
*REDUCED TO CLEAR* *SAVE 20%*

SKU: 370767

  Product Documents

100m TRIAX Domestic RG6 White PVC

Copper Clad Steel (CPR Class Fca)
*REDUCED TO CLEAR* *SAVE 20%*


RG6/ U - PVC white, 100m reel, Coax Cable

Rated according to CPR EN50575 Firestandard Fca

Mechanical
Cable length: 100 m
Minimum bending radius - single/repeated: 27.5 / 75.5 mm
Remarks: 100m Card Reel

Construction
Inner conductor - dimension: 1.02 mm
Dielectric - dimension: 4.6 mm
2. Shield braid - coverage: 40 %
Jacket – dimension: 6.50 mm

Operational

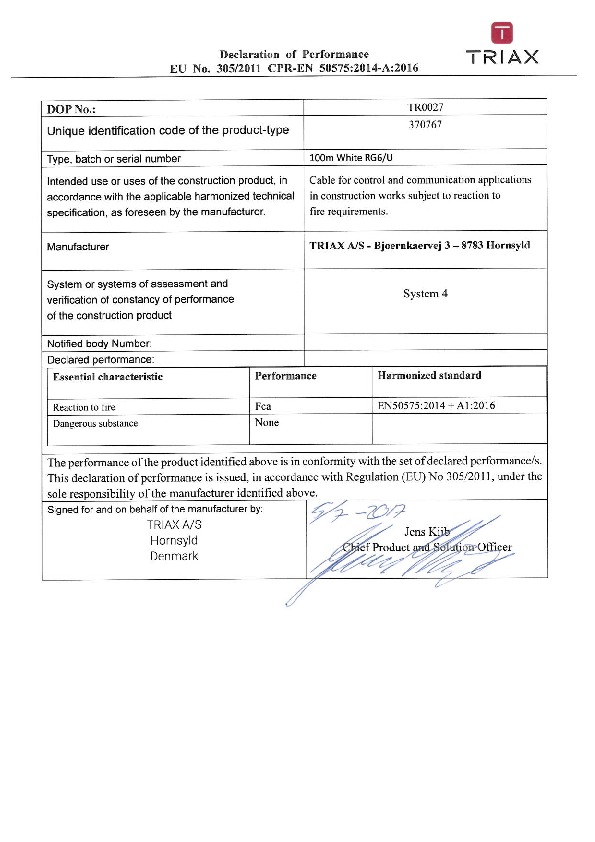

DoP number: TR0027

Shielding
Screening attenuation @ 30-1000 MHz: > 75 dB

Electrical
Impedance: 75 Ω
Capacity: 52 pF/m
Velocity ratio: < 82 %
Inner DC resistance: < 102 Ω/km
Outer DC resistance: < 60 Ω/km

Loss
Attenuation (20°C/100mtr) @ 5 MHz: 1.6 dB
Attenuation (20°C/100mtr) @ 50 MHz: 4.6 dB
Attenuation (20°C/100mtr) @ 100 MHz: 6.5 dB
Attenuation (20°C/100mtr) @ 200 MHz: 9.5 dB
Attenuation (20°C/100mtr) @ 470 MHz: 15.0 dB
Attenuation (20°C/100mtr) @ 862 MHz: 19.5 dB
Attenuation (20°C/100mtr) @ 1000 MHz: 21.5 dB
Attenuation (20°C/100mtr) @ 1750 MHz: 29.0 dB
Attenuation (20°C/100mtr) @ 2150 MHz: 32.5 dB
Attenuation (20°C/100mtr) @ 3000 MHz: 39.0 dB

Return loss
Structural return loss @ 5-470 MHz: 23 dB
Structural return loss @ 470-862 MHz: 23 dB
Structural return loss @ 470-1000 MHz: 23 dB
Structural return loss @ 862-2400 MHz: > 20.0 dB
Structural return loss @ 1000-2000 MHz: 18 dB
