(1) KORDZ RJ45 Tool-Less CAT6a Shielded

Plug Black (Single)
*Special Order! NCNR - Check Lead Time*

SKU: P1R45M-C6AS

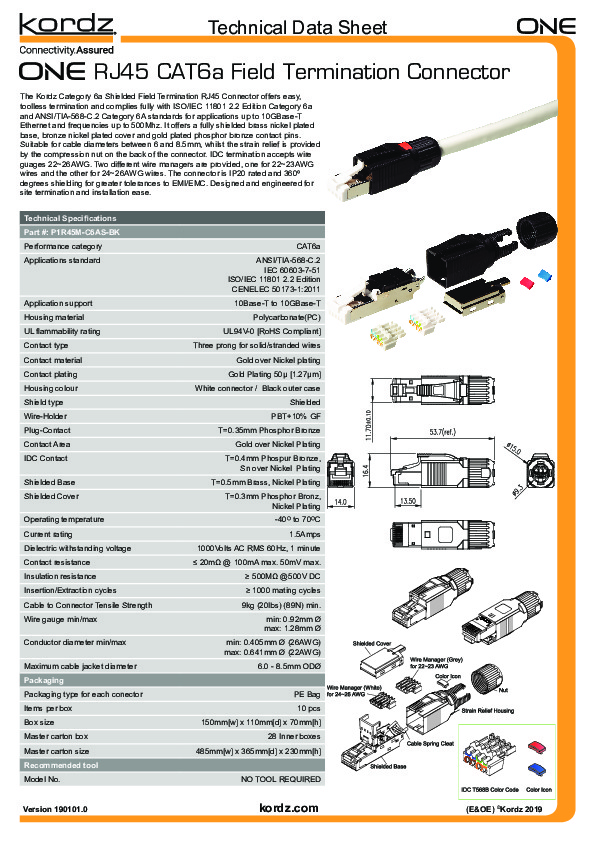

  Product Documents

(1) KORDZ RJ45 Tool-Less CAT6a Shielded

Plug Black (Single)
*Special Order! NCNR - Check Lead Time*


The Kordz Category 6a Shielded Field Termination RJ45 Connector offers easy, toolless termination and complies fully with ISO/IEC 11801 2.2 Edition Category 6a and ANSI/TIA-568-C.2 Category 6A standards for applications up to 10GBase-T Ethernet and frequencies up to 500Mhz.

It offers a fully shielded brass nickel plated base, bronze nickel plated cover and gold plated phosphor bronze contact pins.

Suitable for cable diameters between 6 and 8.5mm, whilst the strain relief is provided by the compression nut on the back of the connector. IDC termination accepts wire guages 22~26AWG. Two different wire managers are provided, one for 22~23AWG wires and the other for 24~26AWG wires.

The connector is IP20 rated and 360º degrees shielding for greater tolerances to EMI/EMC. Designed and engineered for site termination and installation ease.

TECHNICAL SPECIFICATIONS:
Performance category: CAT6a
Applications standard: ANSI/TIA-568-C.2, IEC 60603-7-51, ISO/IEC 11801 2.2 Edition, CENELEC 50173-1:2011
Application support: 10Base-T to 10GBase-T
Housing material: Polycarbonate(PC)
UL flammability rating: UL94V-0 [RoHS Compliant]
Contact type: Three prong for solid/stranded wires
Contact material: Gold over Nickel plating
Contact plating: Gold Plating 50μ [1.27μm]
Housing colour: White connector / Black outer case
Shield type: Shielded
Wire-Holder: PBT+10% GF
Plug-Contact: T=0.35mm Phosphor Bronze
Contact Area: Gold over Nickel Plating
IDC Contact: T=0.4mm Phospur Bronze, Sn over Nickel Plating
Shielded Base: T=0.5mm Brass, Nickel Plating
Shielded Cover: T=0.3mm Phosphor Bronze, Nickel Plating
Operating temperature: -40ᴼ to 70ᴼC
Current rating: 1.5Amps
Dielectric withstanding voltage: 1000Volts AC RMS 60Hz, 1 minute
Contact resistance: ≤ 20mΩ @ 100mA max. 50mV max.
Insulation resistance: ≥ 500MΩ @500V DC
Insertion/Extraction cycles: ≥ 1000 mating cycles
Cable to Connector Tensile Strength: 9kg (20lbs) (89N) min.
Wire gauge min/max: min: 0.92mm Ø, max: 1.28mm Ø
Conductor diameter min/max: min: 0.405mm Ø (26AWG), max: 0.641mm Ø (22AWG)
Maximum cable jacket diameter: 6.0 - 8.5mm ODØ

PACKAGING:
Packaging type for each connector: PE Bag
Items per bag: 1 pcs

RECOMMENDED TOOL
Model No: NO TOOL REQUIRED
