(1) UBIQUITI UniFi NanoHD AP 1733Mbps

Access Point 4x4 MU-MIMO 2.4/5 GHz(Single)
c/w PoE Injector
*Special Order - Please Check Lead Times*

SKU: UAP-NANOHD

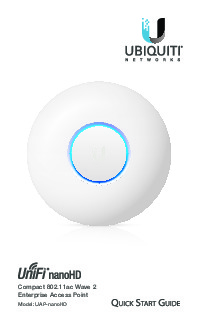

Product Documents

PDF1

(1) UBIQUITI UniFi NanoHD AP 1733Mbps

Access Point 4x4 MU-MIMO 2.4/5 GHz(Single)
c/w PoE Injector
*Special Order - Please Check Lead Times*


The Ubiquiti UniFi UAP-nanoHD is a compact 802.11ac Wave2 MU-MIMO Enterprise Access Point, much like it's big brother the UAP-AC-HD. Deploy the UniFi nanoHD AP in high-density environments requiring maximum wireless performance and minimal footprint. The UniFi nanoHD AP features simultaneous, dual-band, 4x4 MU-MIMO technology and convenient 802.3af PoE compatibility.

Low-Profile Mounting - The UniFi nanoHD APs low-profile ceiling mount (sold separately) allows you to seamlessly integrate the AP into its environment.

Compact Form Factor - The compact design delivers a cost-effective combination of value and performance.

LED - The unique LED provisioning ring provides administrator location tracking and alerts for each device.

Power over Ethernet (PoE) Standard - The UniFi nanoHD AP can be powered by an 802.3af PoE compliant switch. We recommend powering your UniFi devices with a UniFi PoE Switch (sold separately). The UniFi nanoHD AP is compatible with all UniFi PoE Switches and 48V adapters

Superior Processing Power - The UniFi nanoHD AP is capable of complex operations such as guest control, filtering, and other resource-intensive tasks that may slow down a lesser-equipped AP.

UAP-nanoHD Specifications
*********************************
Dimensions 160 x 160 x 32.65 mm
Weight - 300 g
With Mounting Kits - 315g

Networking Interface (1) 10/100/1000 Ethernet Port
Buttons (1) Reset
Power Method 802.3af
Power Supply UniFi Switch (PoE)
Max. Power Consumption 10.5W
Supported Voltage Range 44 to 57VDC

Operating Frequency
2.4 GHz
5 GHz

Max. TX Power
2.4 GHz - 23 dBm
5 GHz - 26 dBm

Antenna Gain
2.4 GHz - 2.8 dBi
5 GHz - 3 dBi

MIMO
2.4 GHz - 2x2
5 GHz - 4x4

Throughput
2.4GHz - 300 Mbps
5GHz - 1733 Mbps

Wi-Fi Standards 802.11 a/b/g/n/ac/ac-wave2
Wireless Security WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
BSSID 8 per Radio
Mounting Wall/Ceiling (Kits Included)
Operating Temperature -10 to 70 C
Operating Humidity 5 to 95% Noncondensing
Certifications CE, FCC, IC

Advanced Traffic Management
************************************
VLAN - 802.1Q
Advanced QoS - Per-User Rate Limiting
Guest Traffic Isolation - Supported
WMM - Voice, Video, Best Effort, and Background
Concurrent Clients 200+

Supported Data Rates (Mbps)
***********************************
Standard - Data Rates
802.11a - 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n - 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
802.11ac - 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80)
802.11b - 1, 2, 5.5, 11 Mbps
802.11g - 6, 9, 12, 18, 24, 36, 48, 54 Mbps
