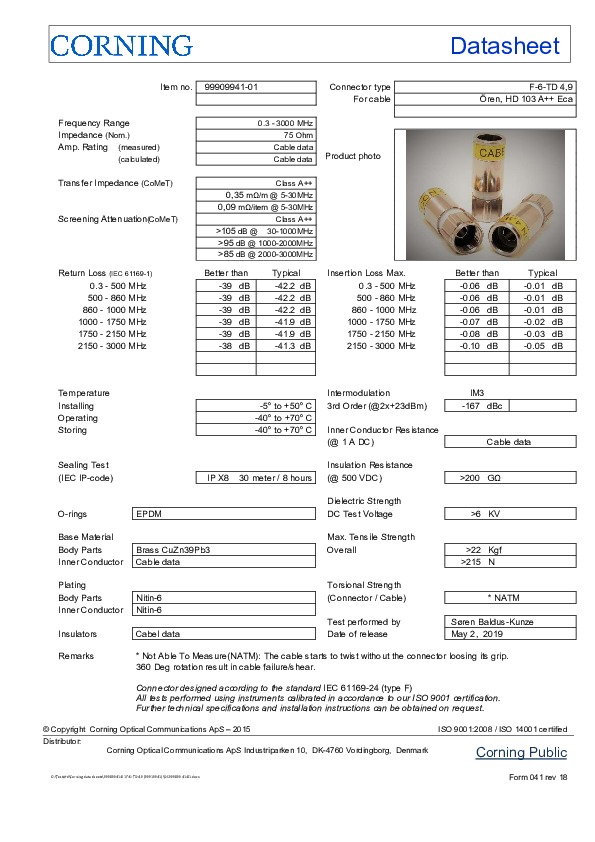

Connector type F-6-TD 4,9
For cable Ören, HD 103 A++ Eca
Frequency Range: 0.3 - 3000 MHz
Impedance (Nom.): 75 Ohm
Amp. Rating (measured): Cable data
Product photo (calculated): Cable data
Transfer Impedance (CoMeT): Class A++ / 0,35 mΩ/m @ 5-30MHz / 0,09 mΩ/item @ 5-30MHz
Screening Attenuation(CoMeT): Class A++ / >105 dB @ 30-1000MHz / >95 dB @ 1000-2000MHz / >85 dB @ 2000-3000MHz
Temperature Installing: -5° to +50° C
Intermodulation: 3rd Order (@2x+23dBm) -167 dBc
Operating -40° to +70° C / Storing -40° to +70° C
Inner Conductor Resistance (@ 1 A DC): Cable data
Sealing Test Insulation Resistance(IEC IP-code): IP X8 30 meter / 8 hours (@ 500 VDC) >200 GΩ
Dielectric Strength: DC Test Voltage >6 KV
O-rings: EPDM
